Hastelloy C-276

[　Release time：03.28.2016　|　Hits：3249　]


Form

ASTM

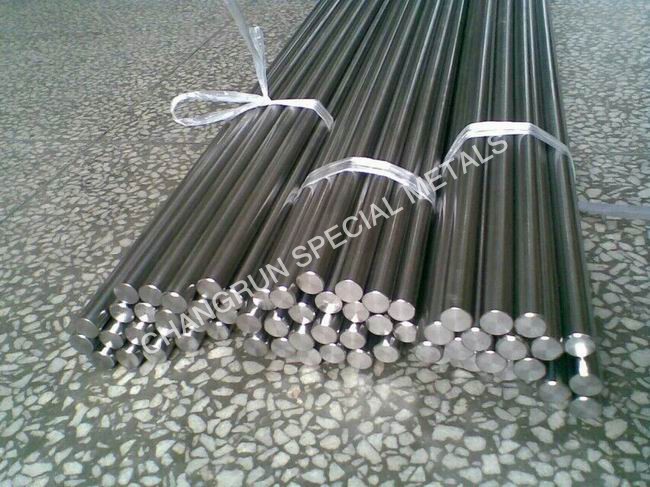

Rod

B 574

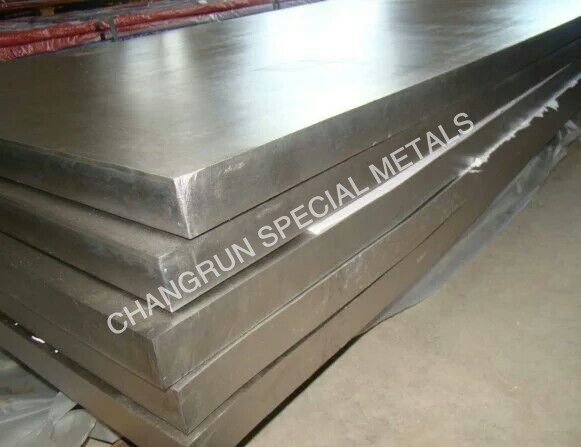

Plate, sheet and strip

B 575

Seamless pipe and tube

B 622

Welded pipe

B 619, B 775

Welded tube

B 626, B 751

Welding fitting

B 366

Forged or rolled pipe flange and forged fitting

B 462

Billet and bar for reforging

B 472

Forging

B 564

　　　　　　　　Chemical composition　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

%

Ni

Cr

Mo

Fe

W

Co

C

Mn

Si

P

S

V

min

balance

20.0

12.5

2.0

2.5








max

22.5

14.5

6.0

3.5

2.5

0.015

0.50

0.08

0.020

0.020

0.35

　　　　　　　　Physical properties　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

Density

8.69 g/cm3

Melting range

1325-1370℃


Features: Hastelloy C-276 has excellent resistance to localized corrosion, stress corrosion cracking, and to both oxidizing and reducing media, thus making it suitable for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions. It is one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.

Applications: Chemical processing, waste treatment, pollution control, pulp and paper production, and marine engineering.
